Elevator LCC Q808 Engine Hoists Wireless Universal Remote Control Radio Crane Controller AC/DC 12v 24v 433 mhz Electronic Switch
Elevator LCC Q808 Engine Hoists Wireless Universal Remote Control Radio Crane Controller AC/DC 12v 24v 433 mhz Electronic Switch
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: LCC
Certification: FCC,CE,ce,FCC
Current: 5A
Distance: ≥ 100 meters / can be customized 300 meters / 500 meters
Features: Wireless remote control
Frequency: 433mhz
Hign-concerned Chemical: None
Housing: Reinforced nylon plastic
IP class: IP65
Item Type: SWITCHES
Material: Plastic
Model Number: Q800
Origin: Mainland China
Product name: Industrial remote control
Receiver Antenna: Inside / optional external antenna
Switch Type: Push Button Switch
Temperature: -35℃~+40℃
Transmitter Antenna: Inside
Transmitter Function: 8 single-speed buttons
Voltage: 12-24V, 24-48V,24-264V,110-460VAC/DC
Warranty: 12 month
Please note :

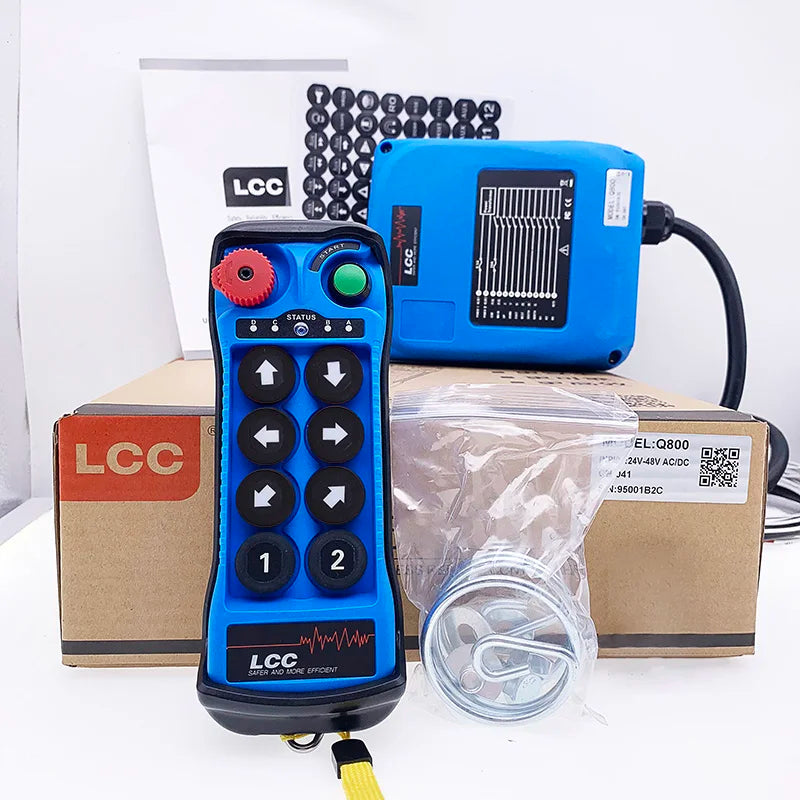

1T1R: 1 transmitter and 1receiver

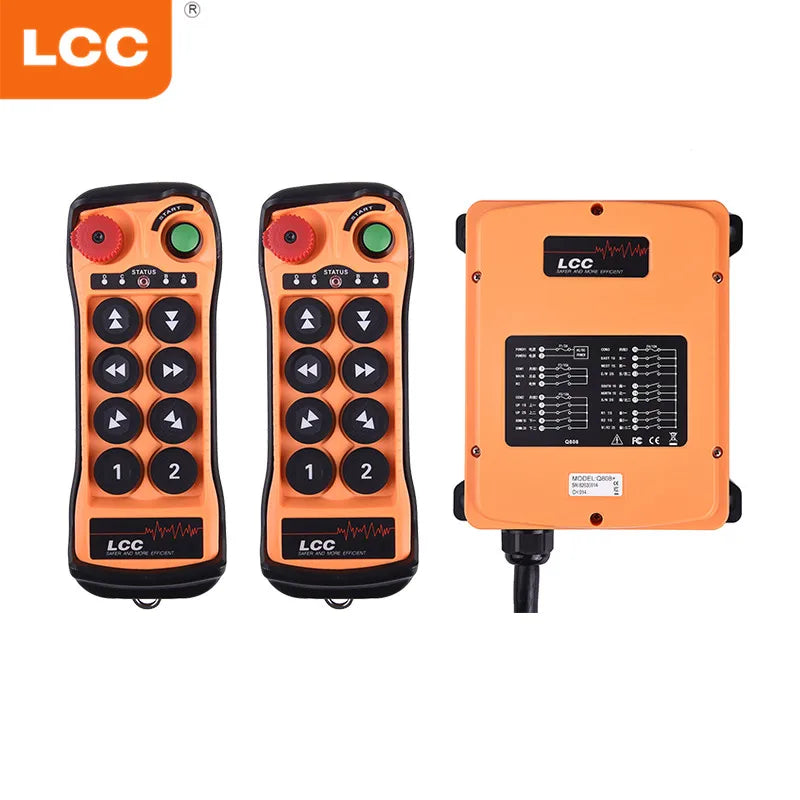

2T1R: 2 transmitters and 1receiver
1T: 1 transmitter
1R: 1 receiver
1 . The remote controller , Button type is Momentary(default)
If you need Latching, please contact me after placing the order and I will arrange for the factory to set it up for you.
Momentary: Press the button, working; release the button, stop working.
Latching: Press the button, working; release the button, still working; When you pressed the button again, stop working.
2 . We provide customized services.
3 . We are a professional manufacturer of industrial remote controls and have been in this field for 12 years. We can provide the best service, the best quality and the best price.
Any question or problem , please feel free contact with me. I'm online almost24 hours a day.
4 . Due to different global customs policies, your package may be subject to customs duties imposed by your country's customs. The collection of tariffs is not related to the seller. Please handle the customs clearance process in a timely manner according to customs policies!

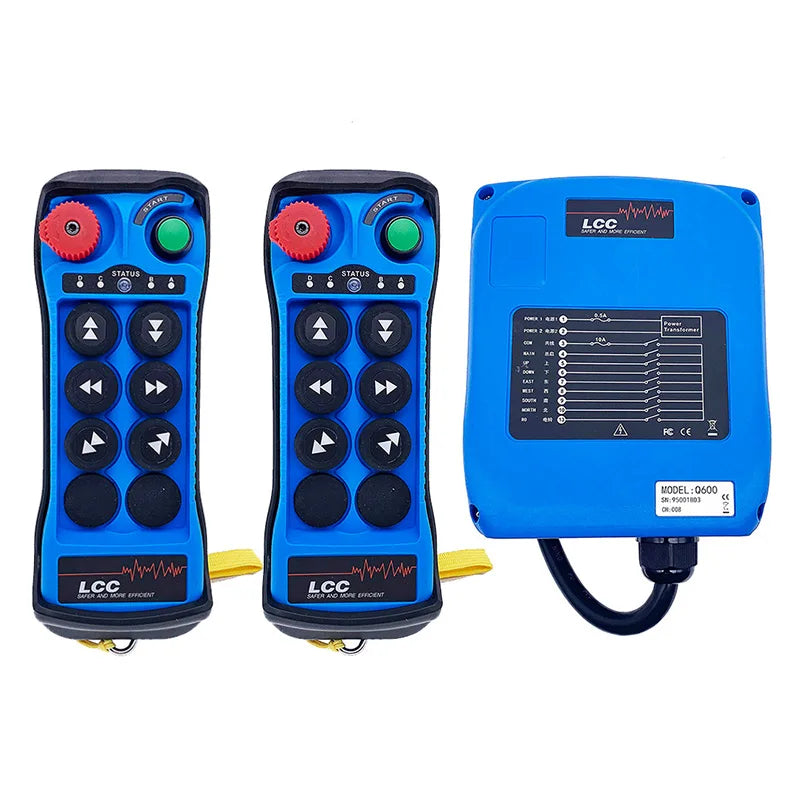

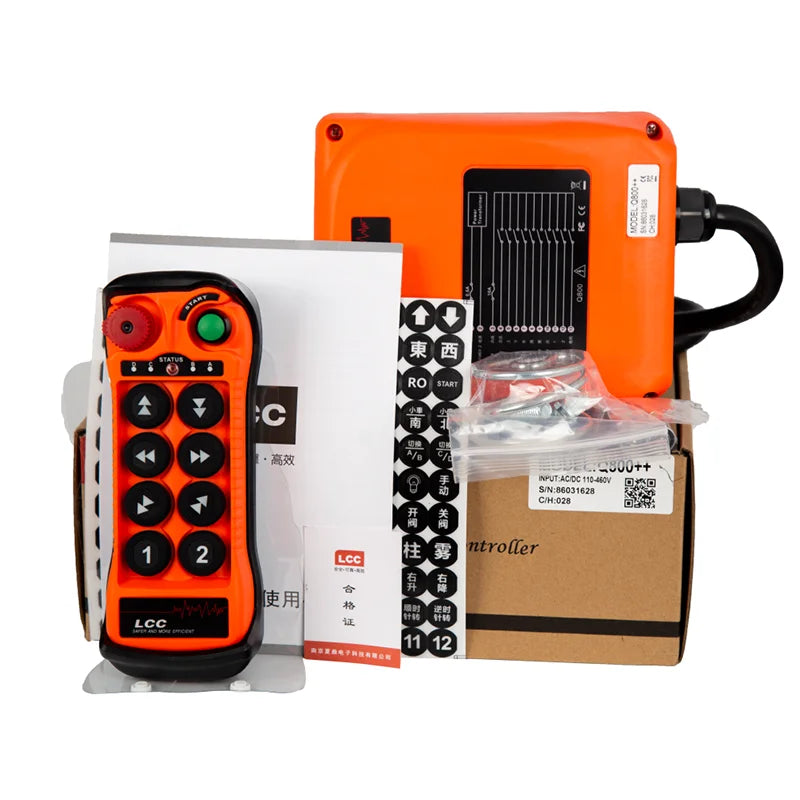

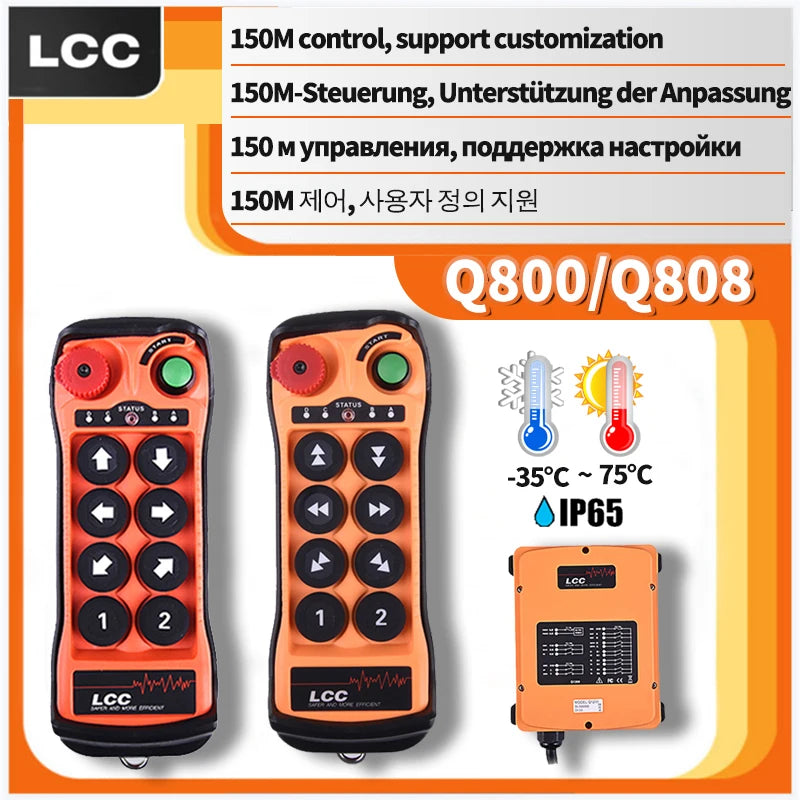

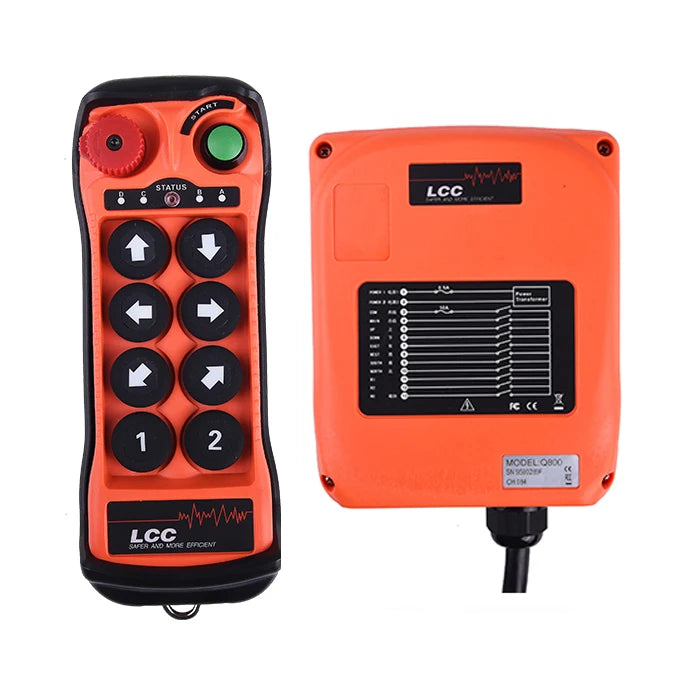

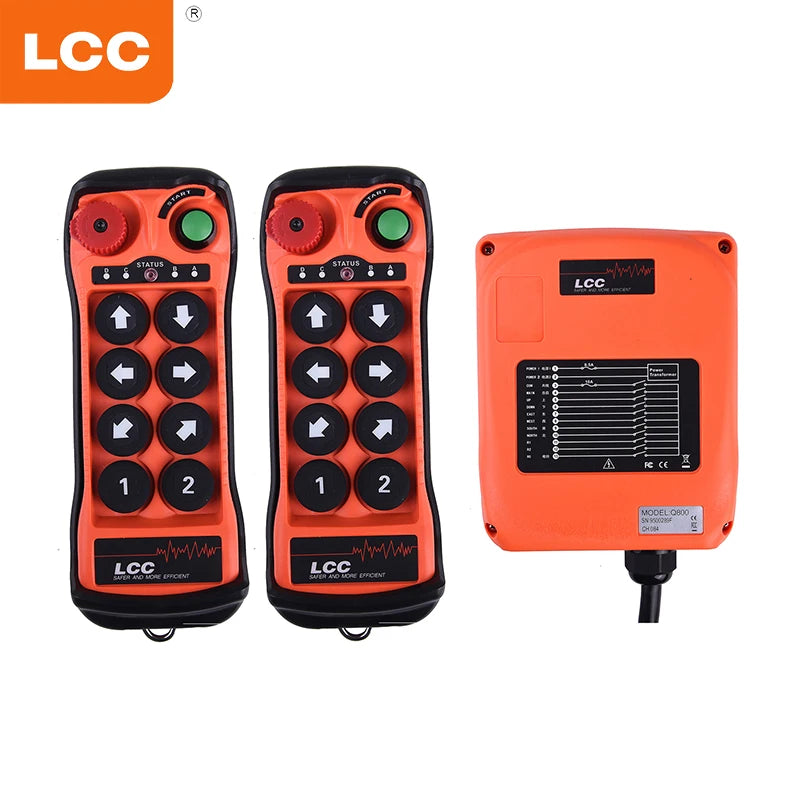

LCC Industrial Remote Control
Q800—Single speed：Long press the button to control the device, release the button the device stops

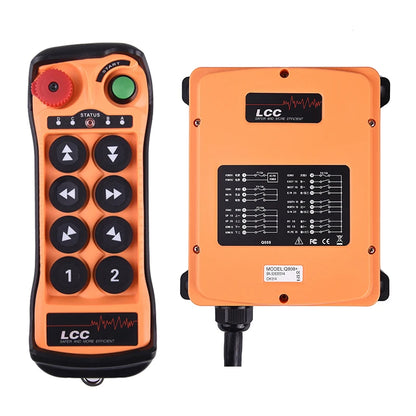

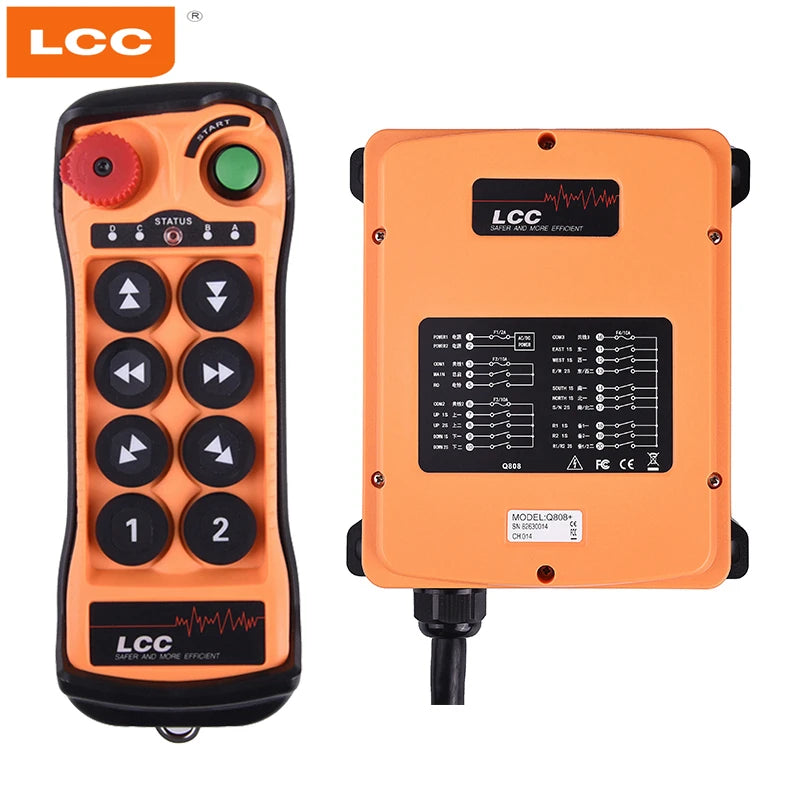

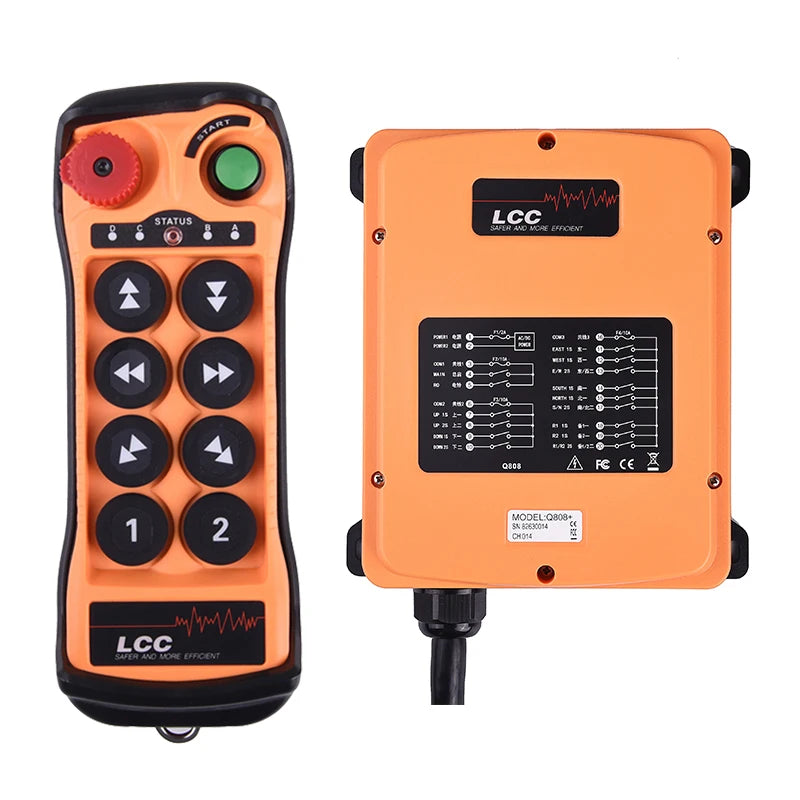

Q808—Variable speed：Click the button to control the device, press hard to increase the speed, release the button to stop the control
Frequency: 433 Mhz
Power supply: DC LR6 ( AA ) 1.5vSVx2dc3v
Remote control distance: 100M (50-500M adjustable)
Dispensing mode: GFSK
Frequency control: PLL
Wlreless impedance Ω: 50O
Instruction corresponding time ：＜100Ms
Transmitter radiofrequency power ：＜10MW
Stop instruction corresponding time ：＜100MS
Average power consumptionMA@DC : 8MA@DC3V
Net quantify ( Containing battery ) ：380G
Shell materia： PA6 + 30 % GF
Reaction time : 50 - 100MS
Protection grade : IP66
Operating temperature : -35℃ ~ 75℃
CPU：Ti chip
Relay：TE
Buttons：Alps
FAQ
Q: Is the product genuine?
A: Guarantee the original authentic products. The products sold in our store are all original authentic products. If they are fake, there will be a penalty of ten, and there will be no reason to return or exchange the goods within 30 days.
Q: What should I do if I lose the transmitter?What should I do if the remote control is broken?
A: 1. The transmitter can be directly paired with the receiver. You can take the same remote control at will and pair it wirelessly according to the wireless pairing method. No professional equipment is required, which is safe and simple.
2. You can provide the SN identification code and CH frequency code on the back of the transmitter or receiver. We will program and pair the transmitter for you, and you can use it directly after you receive it.
Q: What should I do if I can't connect the wiring?

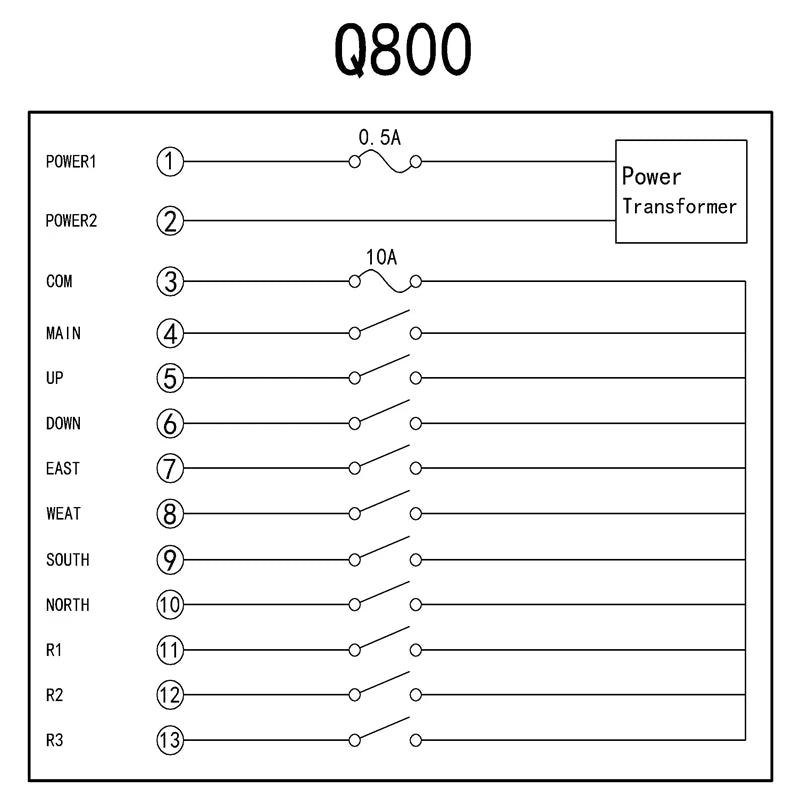

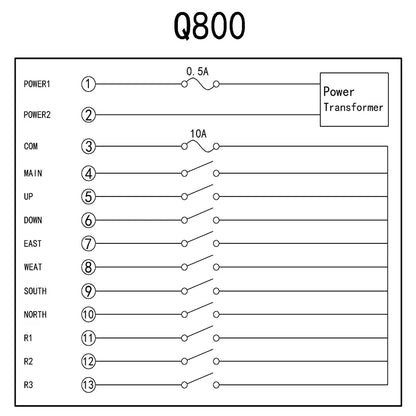

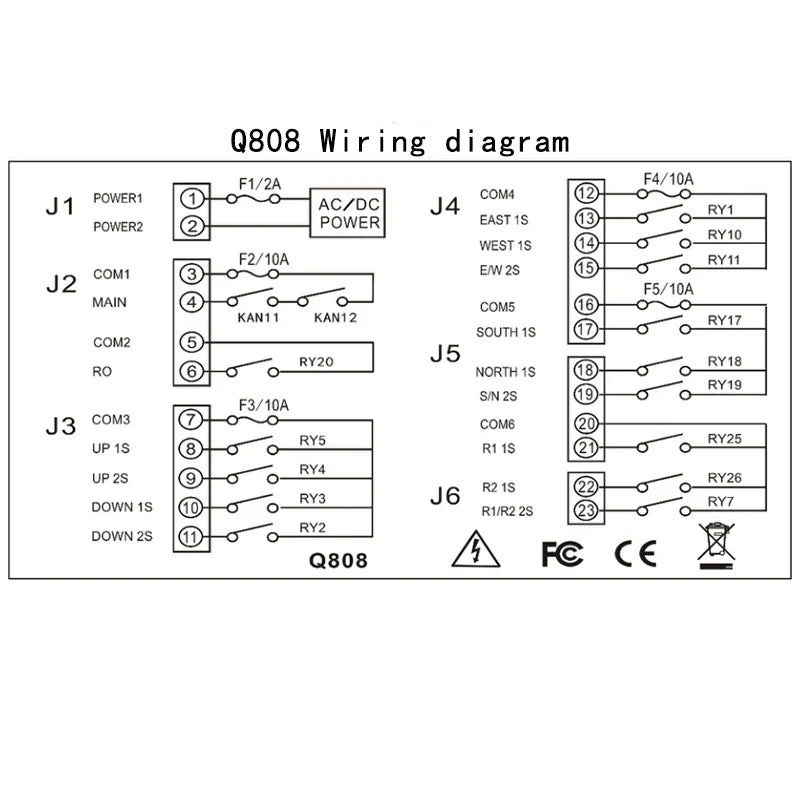

A: Don't worry at all. Each of our remote controls is equipped with a wiring diagram, and a master with 20 years of professional remote control experience will guide you one-on-one.
Q: When will the photo be shipped?
A: After the payment is taken before 17 o'clock on the same day, it will be shipped on the same day.
Q: What is included in the warranty?
A: Within three years of the warranty, if the remote control is damaged due to non-human factors, we will not charge any maintenance fees. If the human factors fail, we will only charge for accessories.
