SPECIFICATIONS

Accuracy Class: High

Battery Included: No

Brand Name: JUANJUAN

Certification: CE

Choice: yes

DIY Supplies: Electrical

Dimensions: Approx. 9x8x8cm

Display Type: Digital Only

Hign-concerned Chemical: None

JUANJUAN Model: KWS-302

Max Operating Current: 50A - 79A

Measuring Energy Range: 0-63A

Model Number: WiFi Power Meter 2P AC Energy Meter

Operating Temperature: -20-150℃

Origin: Mainland China

Output Voltage: 170-270V

Phase: single phase

Power Supply: AC

Rated Voltage: 270V

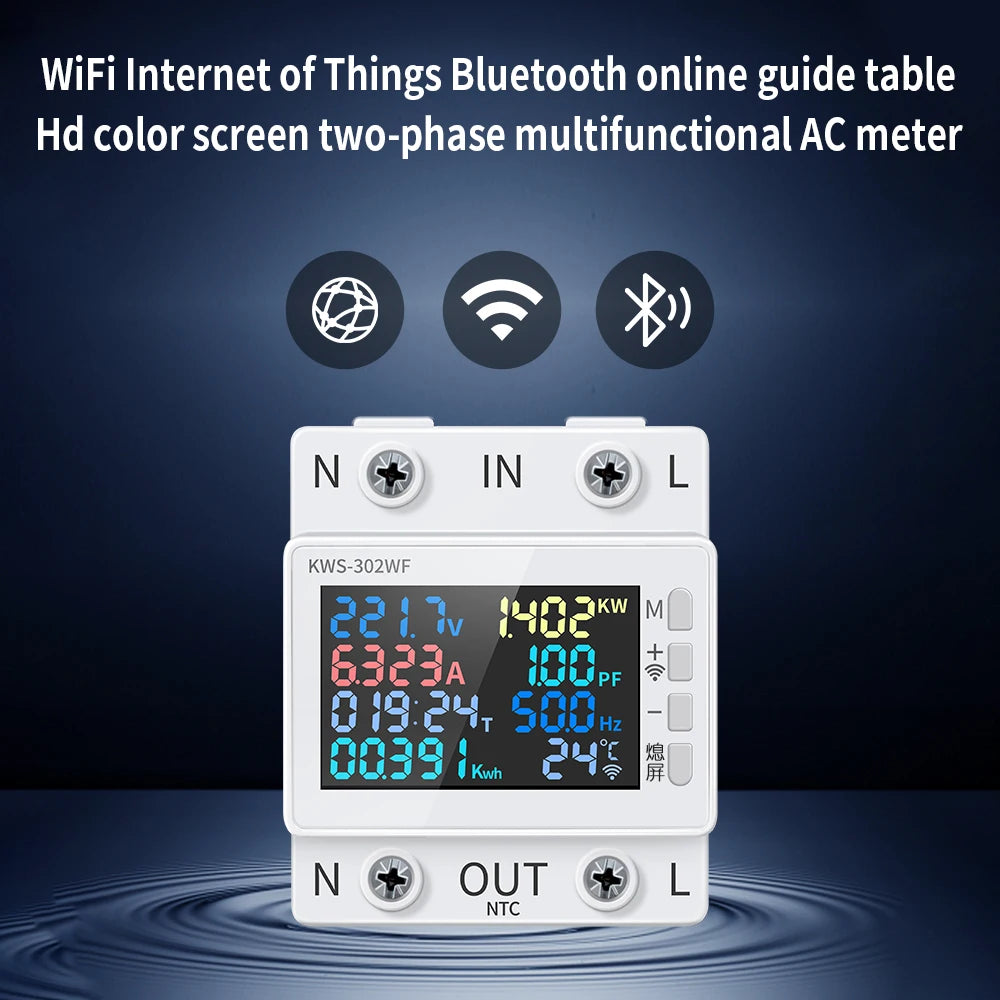

Tuya WiFi 8in1 Power Meter 2P AC Energy Meter APP Control 170-270V/63A Voltage and Current Meter Electricity Meter Smart Life

This 2P energy meter has a higher definition interface, more accurate data display, more convenient operation, safer electricity use. Voltage, current, power, timing, electric energy, temperature, frequency and power factor 8in1 design, convenient for users to understand the use of electric energy, realize the visualization of electricity consumption. Standard guide rail installation, suitable for apartments, companies, shopping malls, hotels, family homes, and so on.

Features:
Premium Material: This energy neter is made of ABS and PC material, higher strength and toughness, higher temperature resistance, better overall performance.

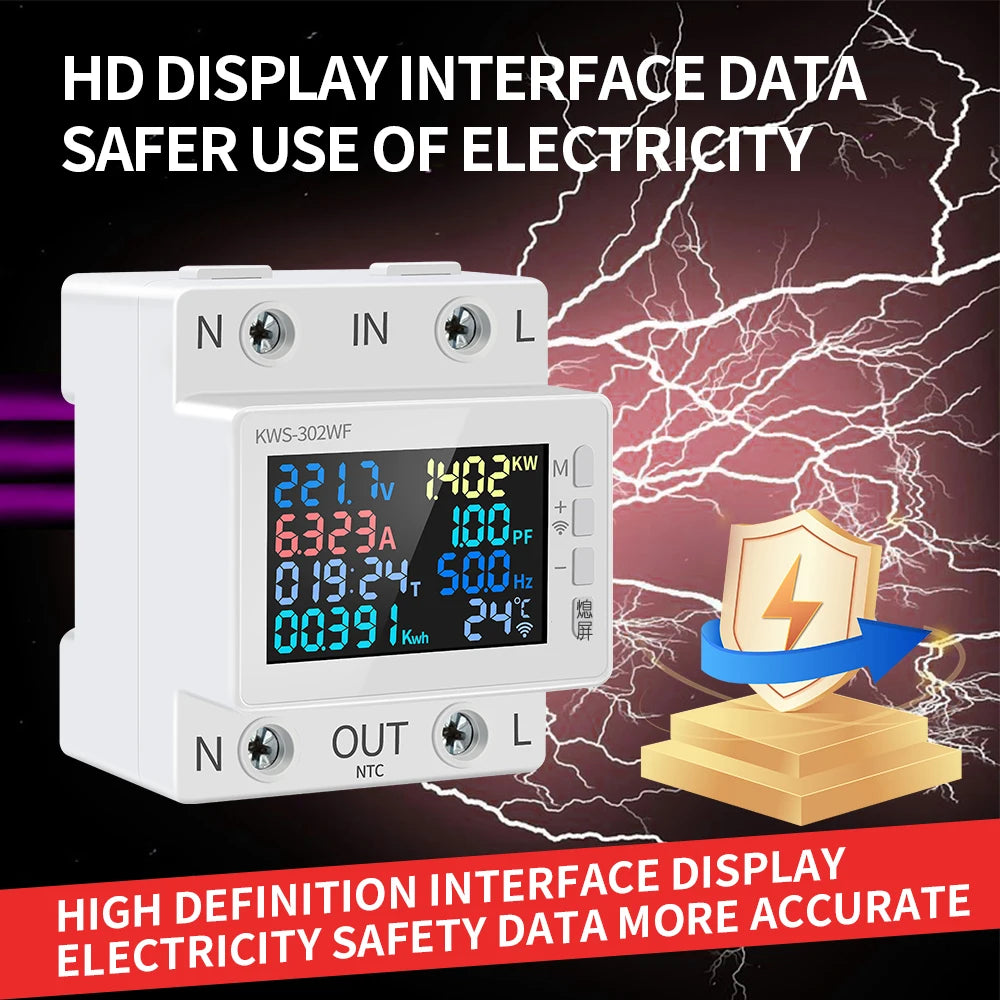

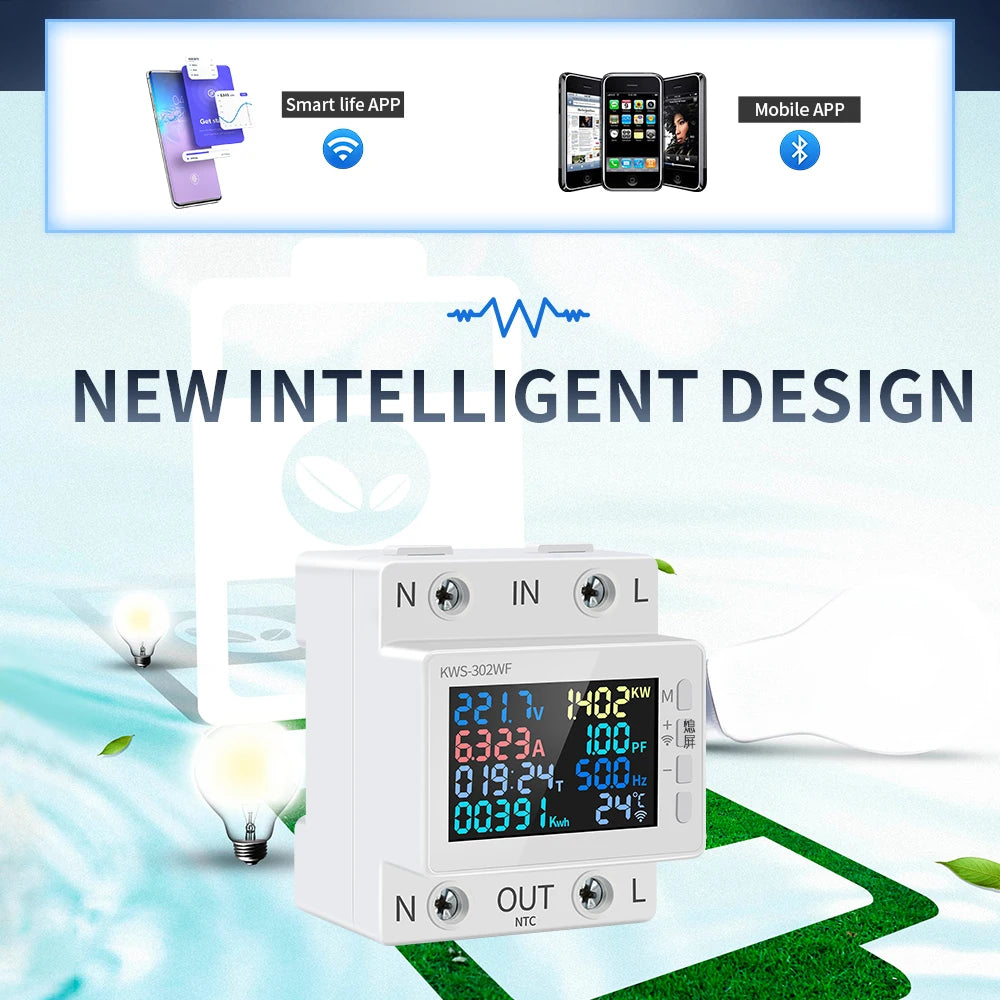

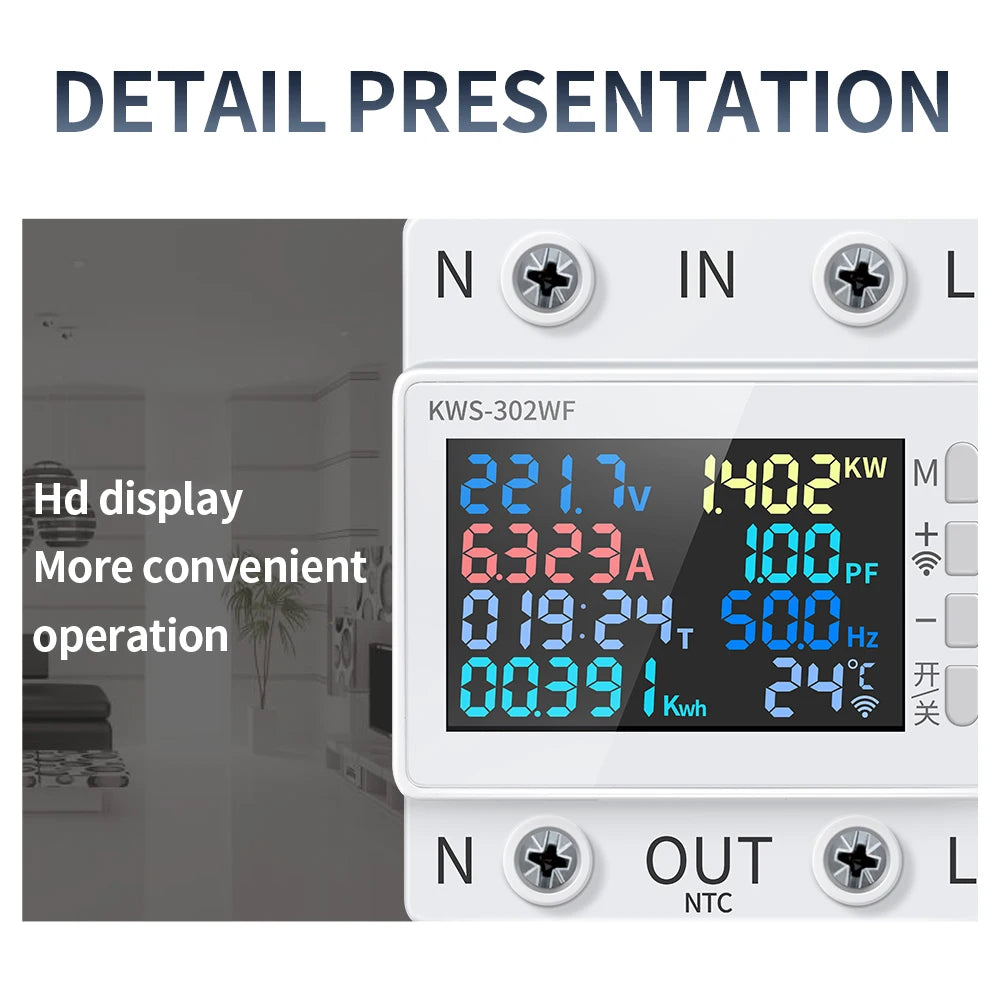

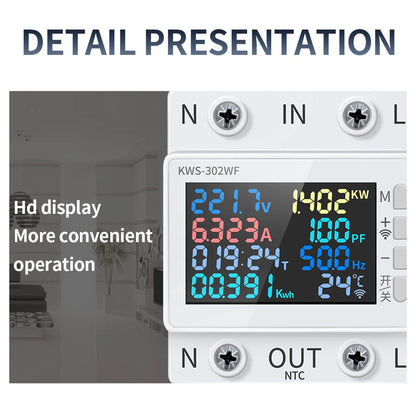

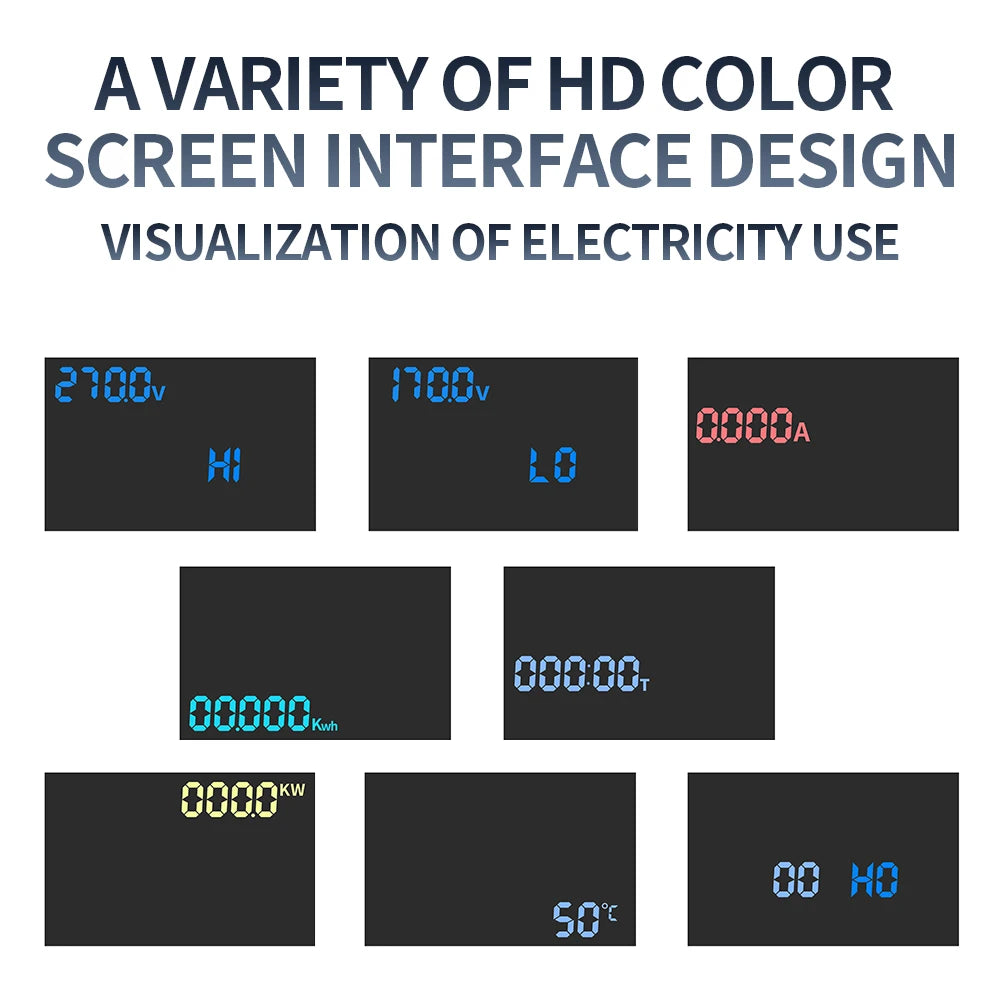

Multi-color Screen Interface Design: New intelligent design, higher definition interface, more accurate data display, more convenient operation, safer electricity use.
Multi-functional Design: Voltage, current, power, timing, electric energy, temperature, frequency and power factor 8in1 design, convenient for users to understand the use of electric energy, realize the visualization of electricity consumption. And with power-off memory function.

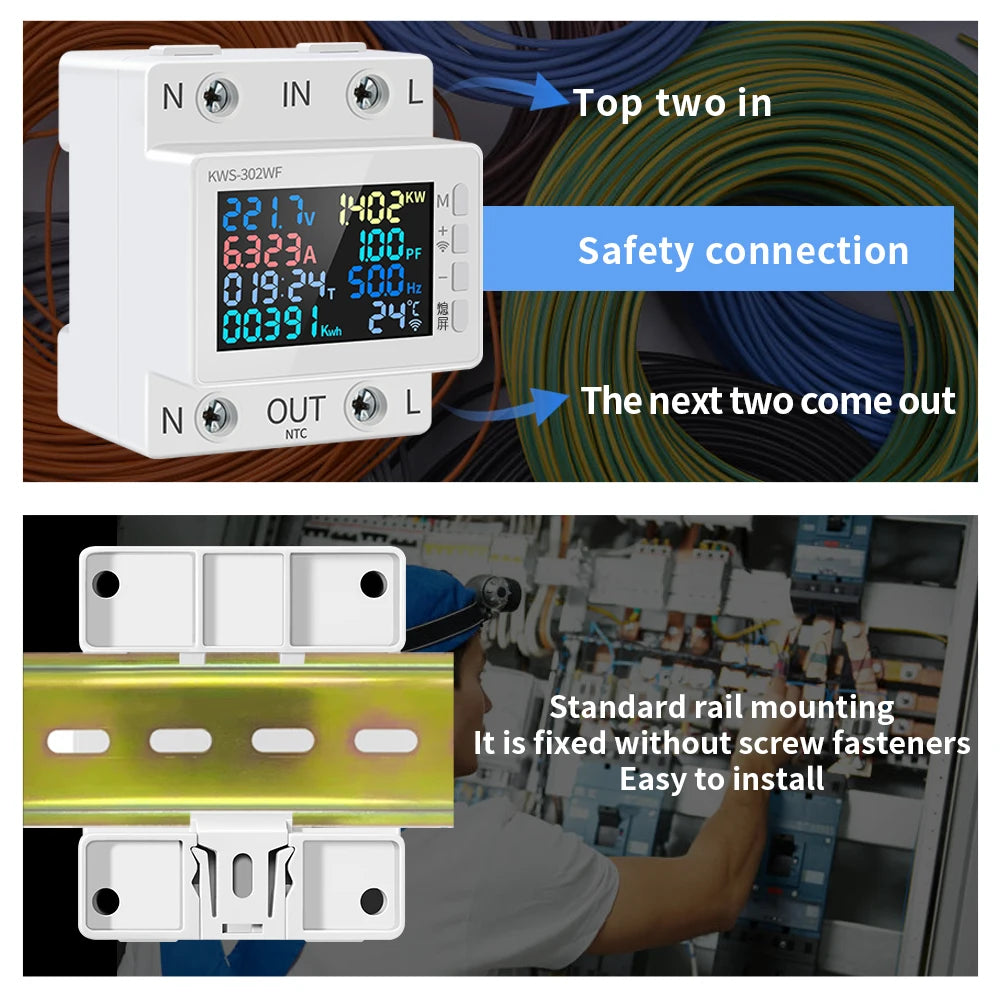

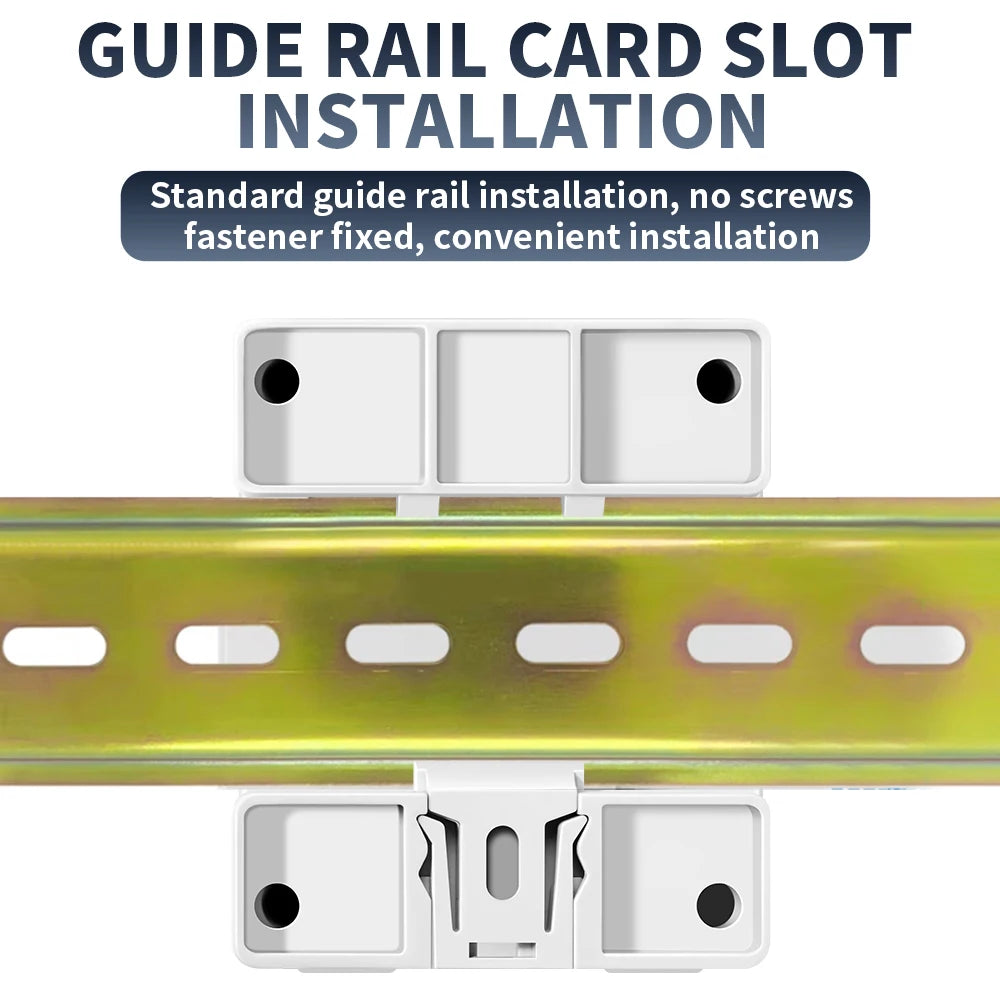

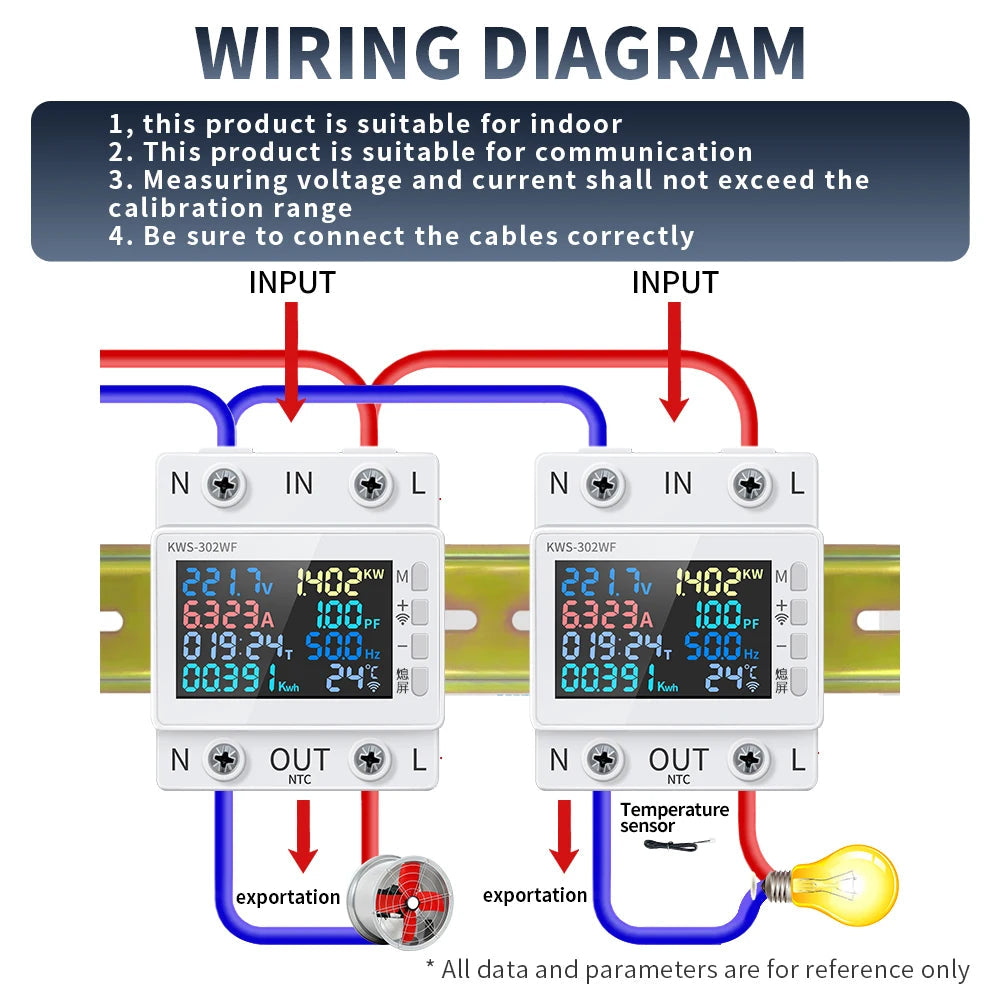

Guide Rail Slot Installation: Standard guide rail installation, no screws, snap-on mounting, convenient and easy to install.
Wide Applications: Suitable for high and low power distribution cabinets, display cabinets and racks, factory assembly lines, corporate warehouses, rental apartments, companies, shopping malls, hotels, family homes, and so on.

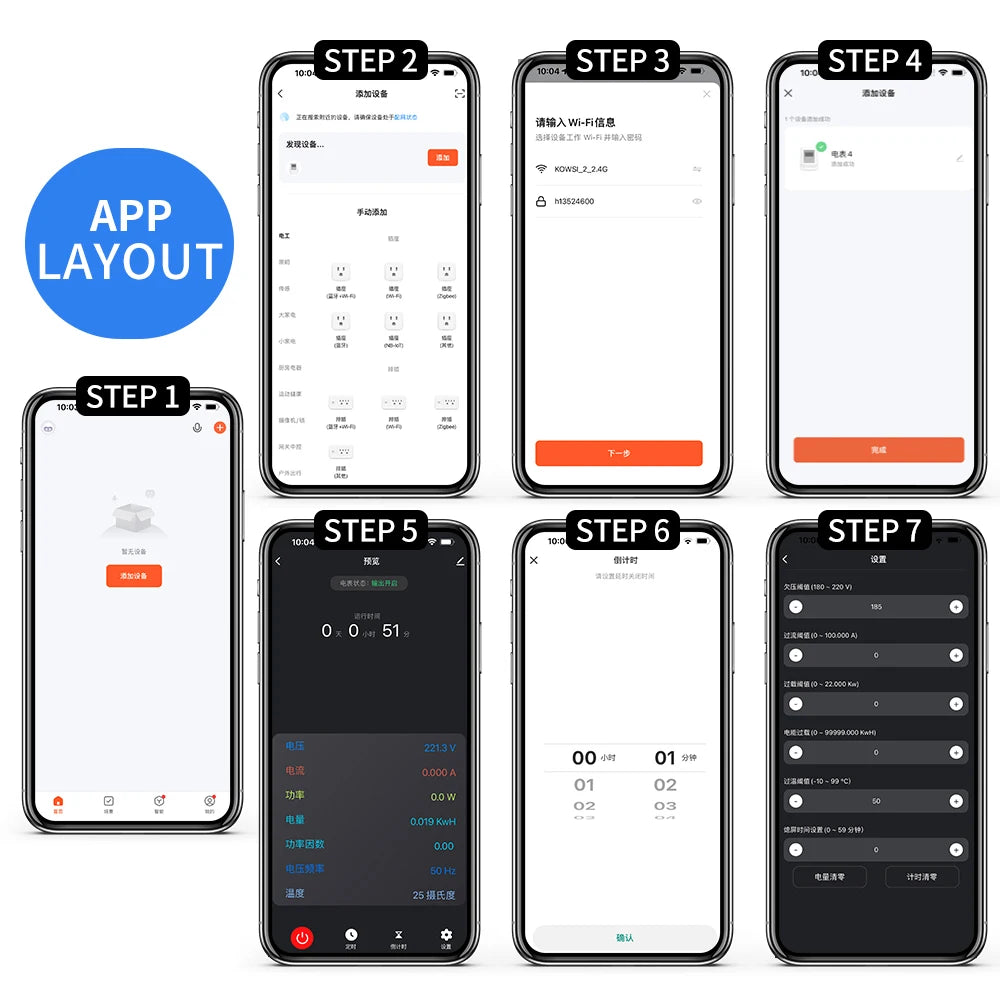

APP Function (Only KWS-302WF Support):

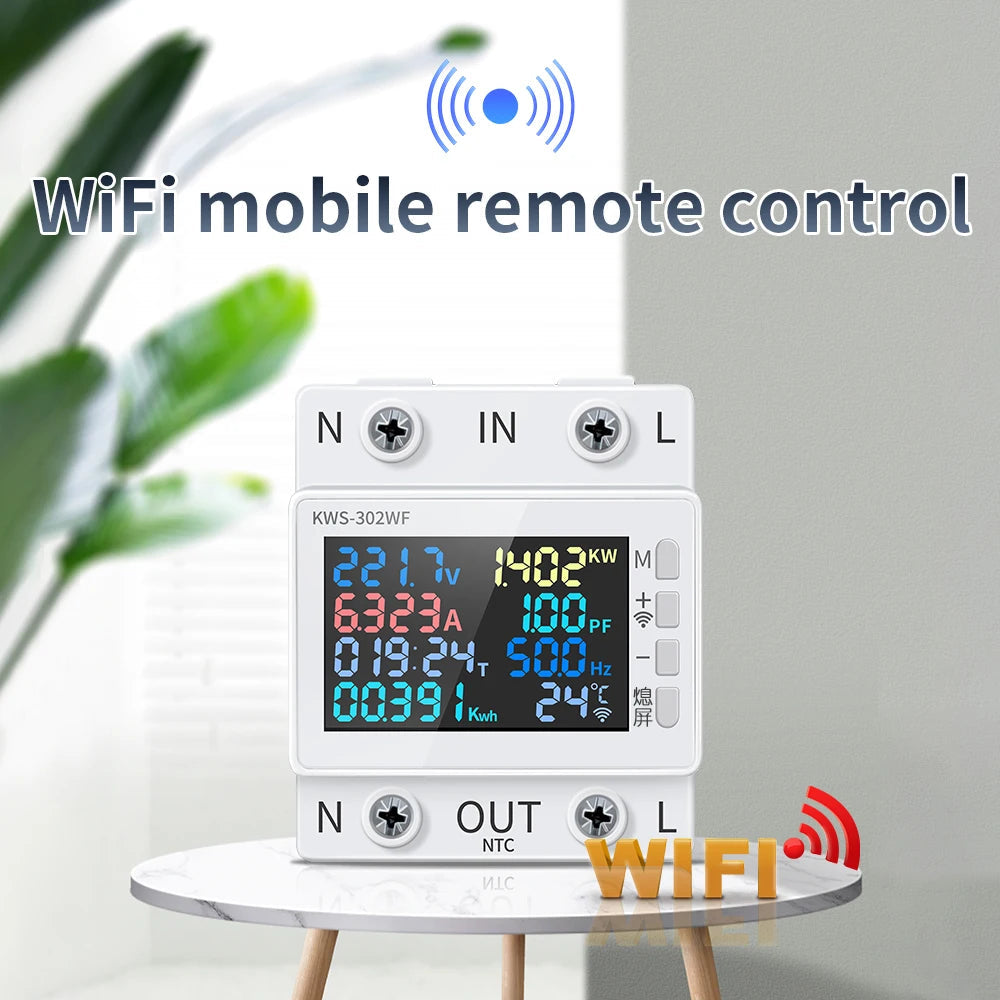

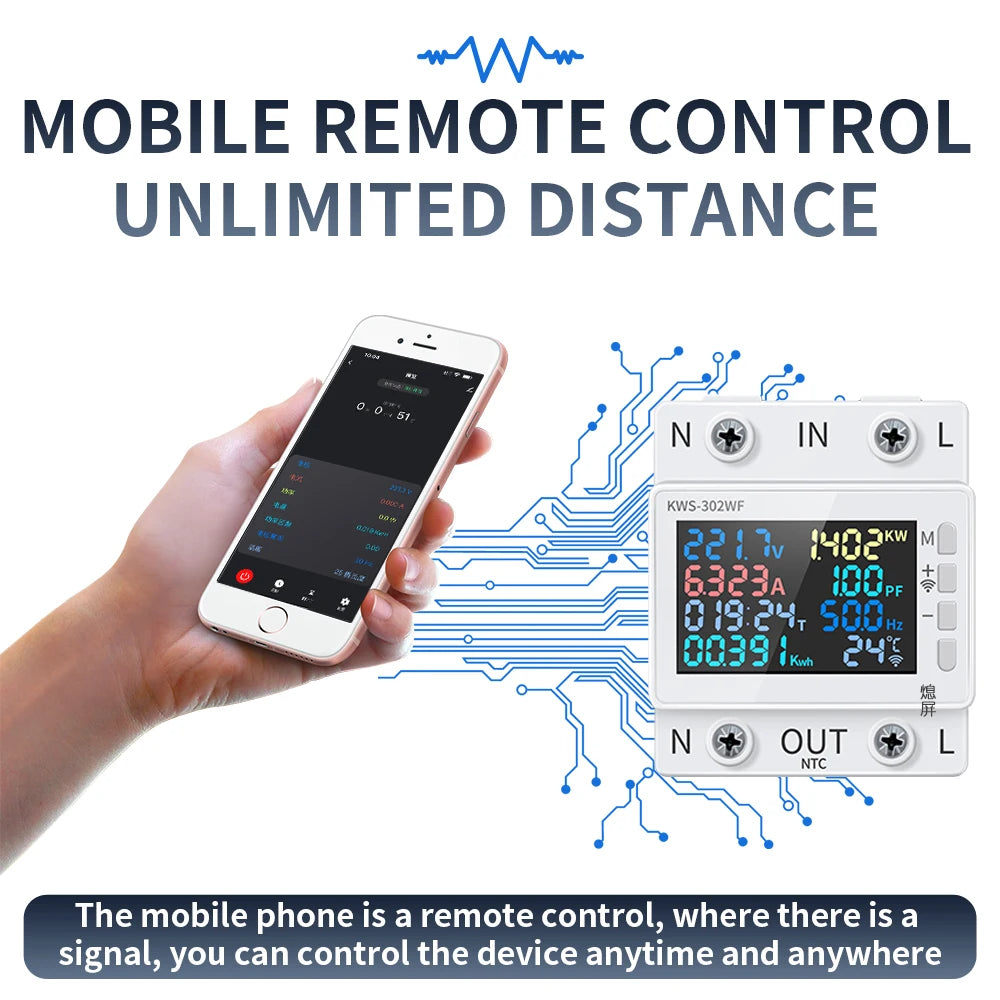

Cellphone Remote APP Control: Download SmartLife APP or graffiti intelligent APP connection, realize WIFI network cloud remote intelligent control. Where there is signal, you can control the device whenever and wherever you want, unlimited distance.

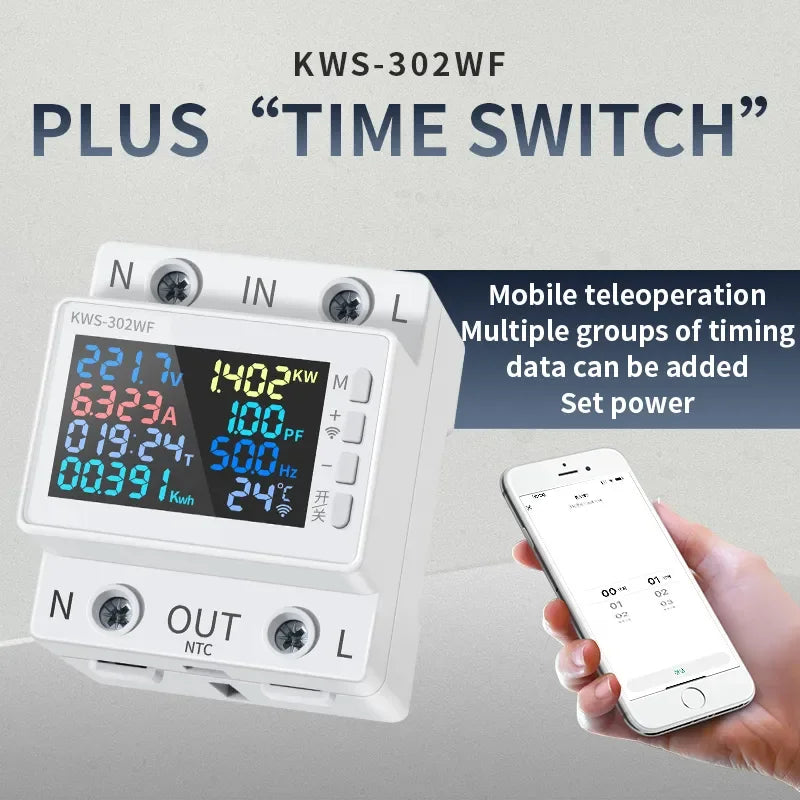

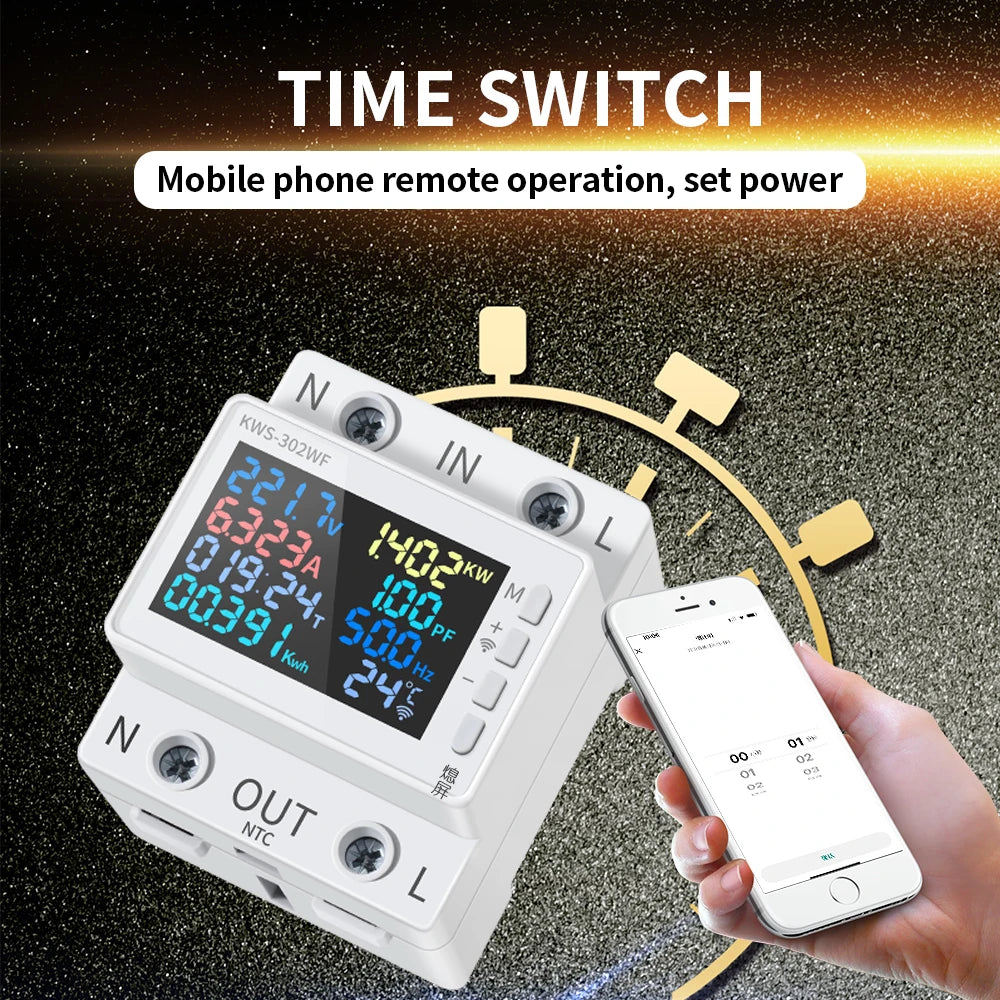

APP Timing Function: Countdown function, you can add multiple sets of time data in the mobilephone APP to set the power on.

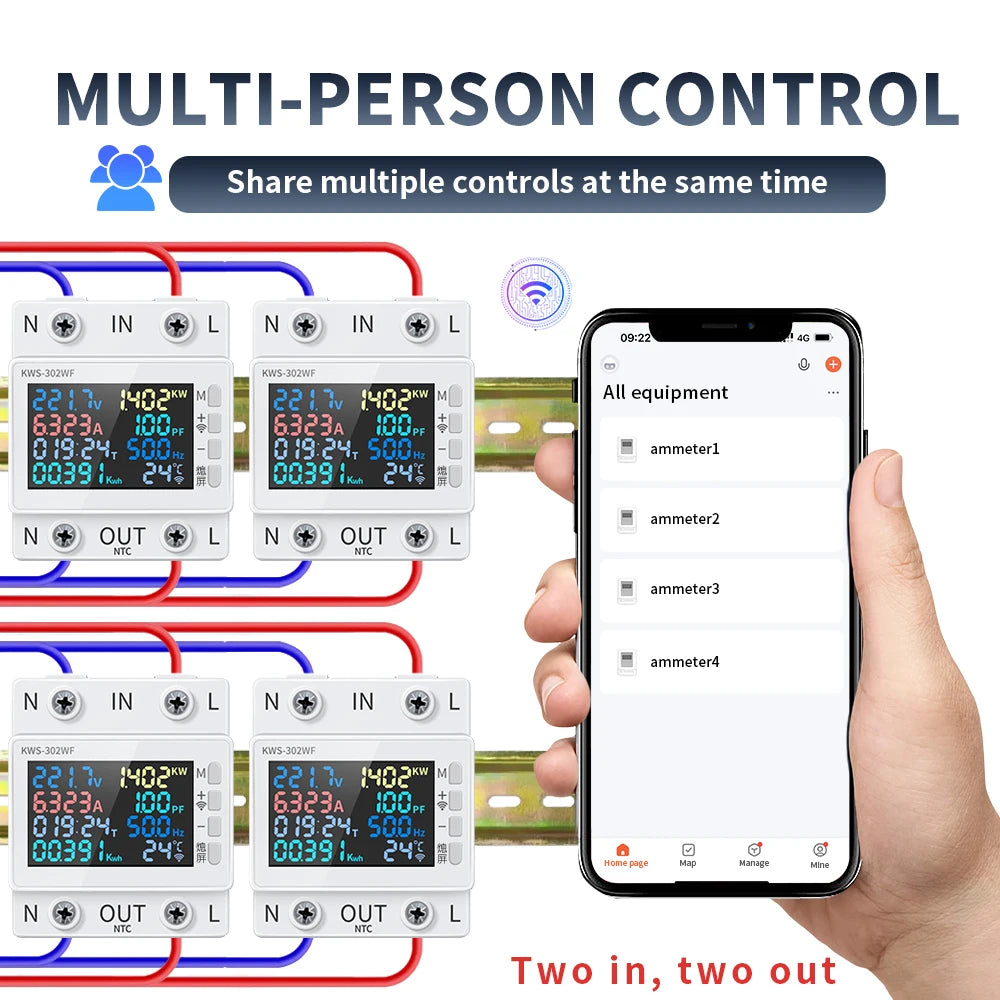

Device Sharing: Share management, multi-person control, support a one cellphone to control multiple switches, at the same time you can share multi-person control.

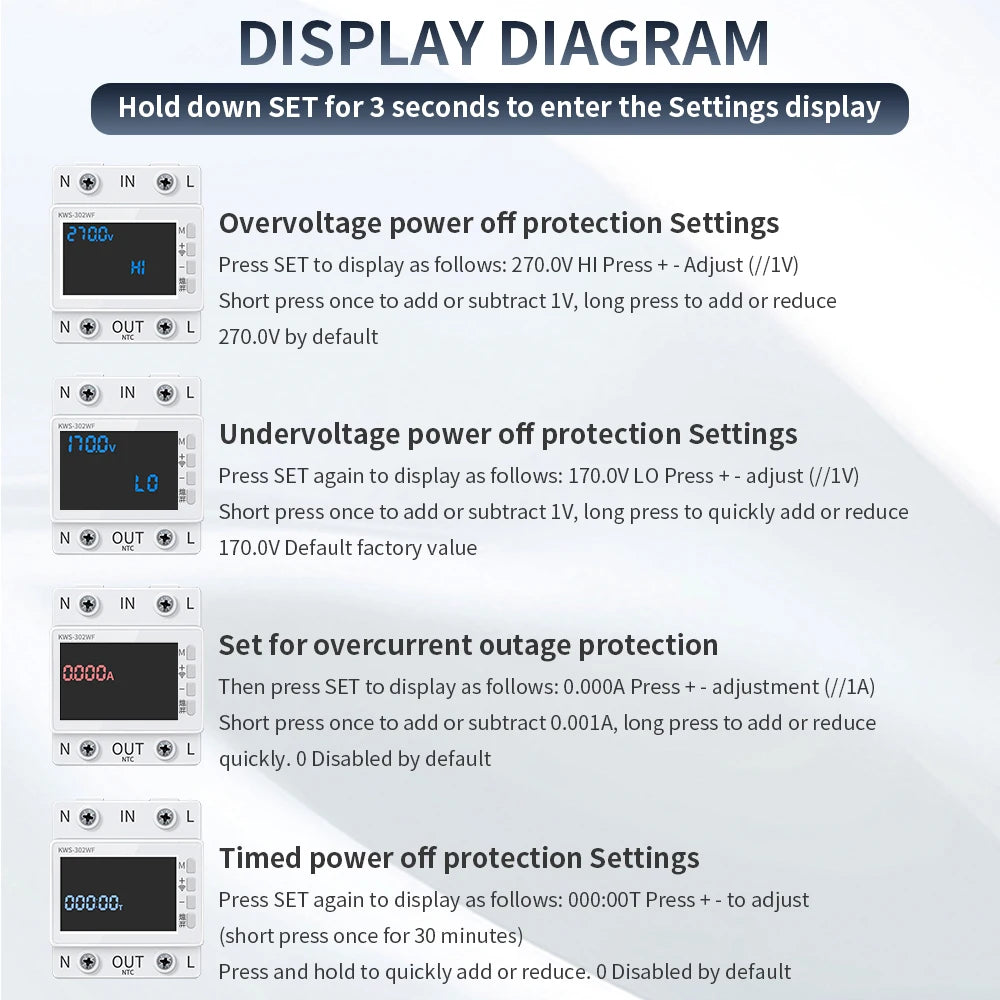

Power Failure Protecting Function (KWS-302WF and KWS-302L Support): Support over-voltage, under-voltage, over-current, over-power, over-temperature, timer power failure protections setting, and screen hibernation setting.

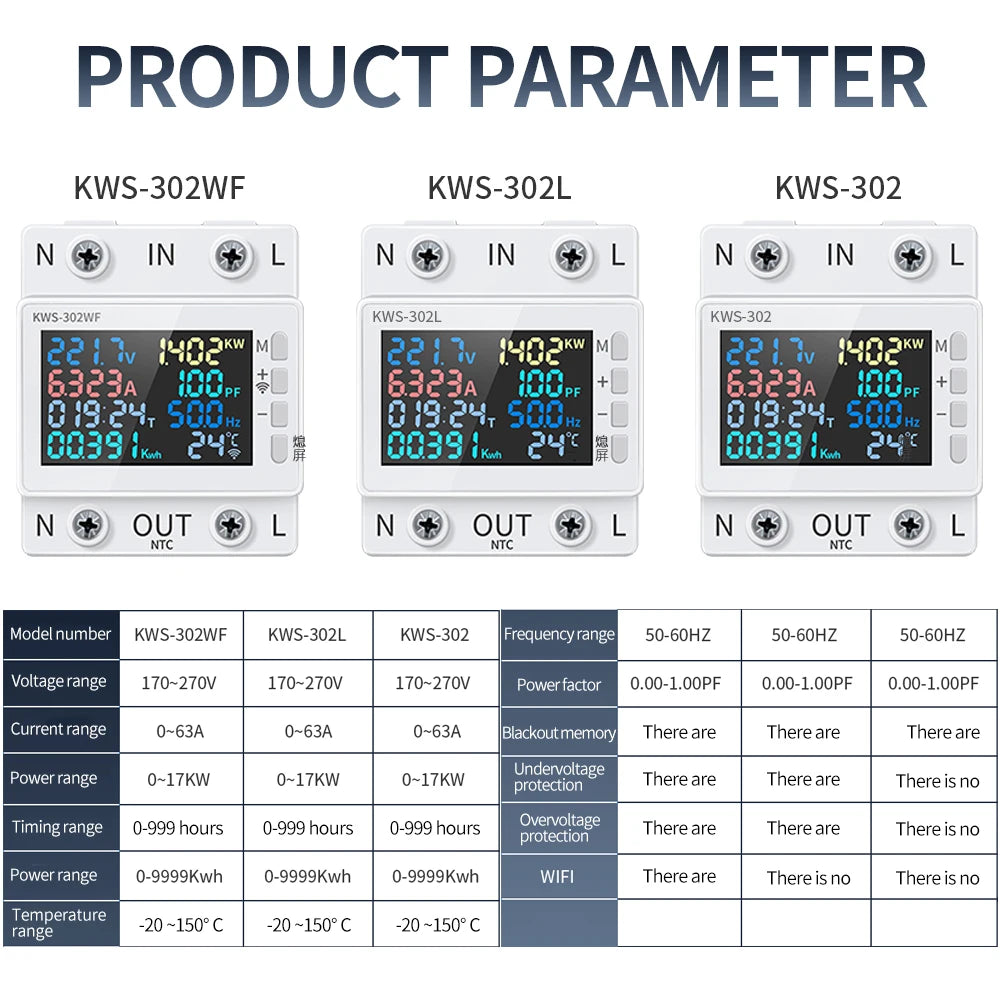

Specifications:
Name: 8in1 Energy Meter
Material: ABS+PC+VO
Model: KWS-302WF, KWS-302L, KWS-302 (optional)

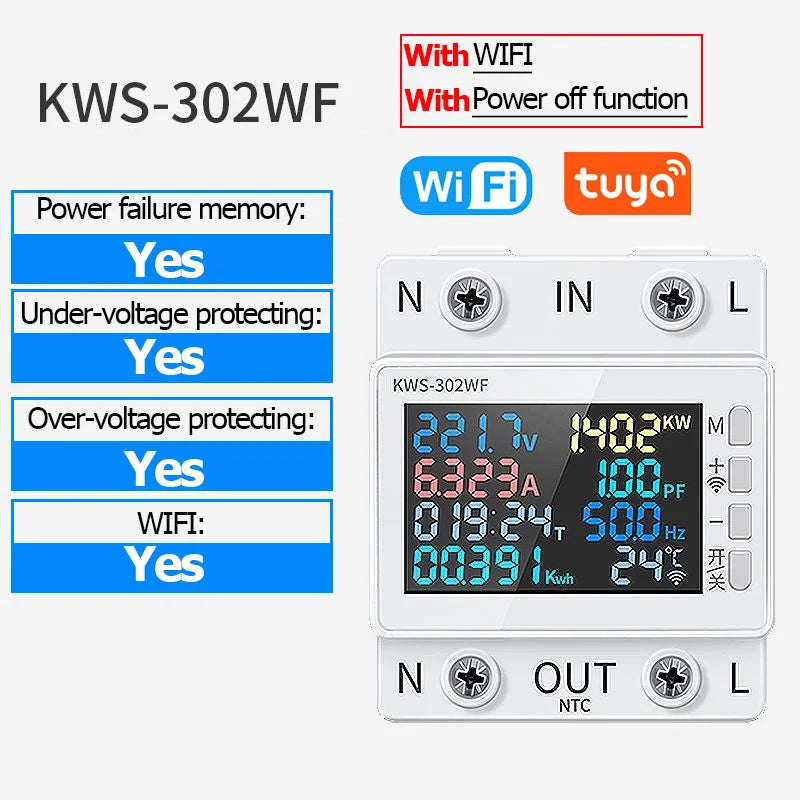

Pls Note:KWS-302WF (with WIFI and power off function)

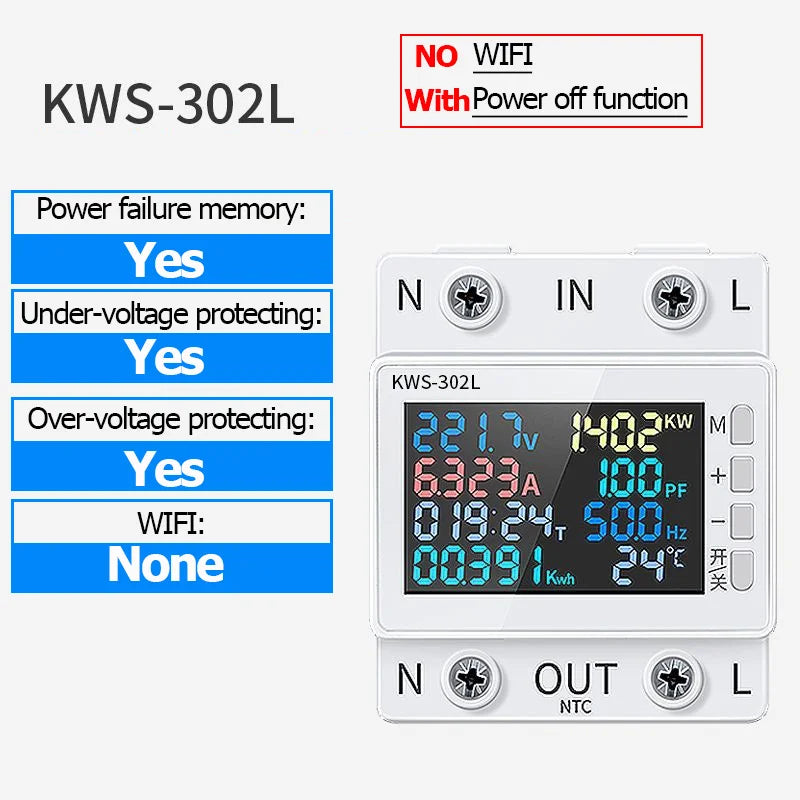

               KWS-302L (without WIFI and with power off function)

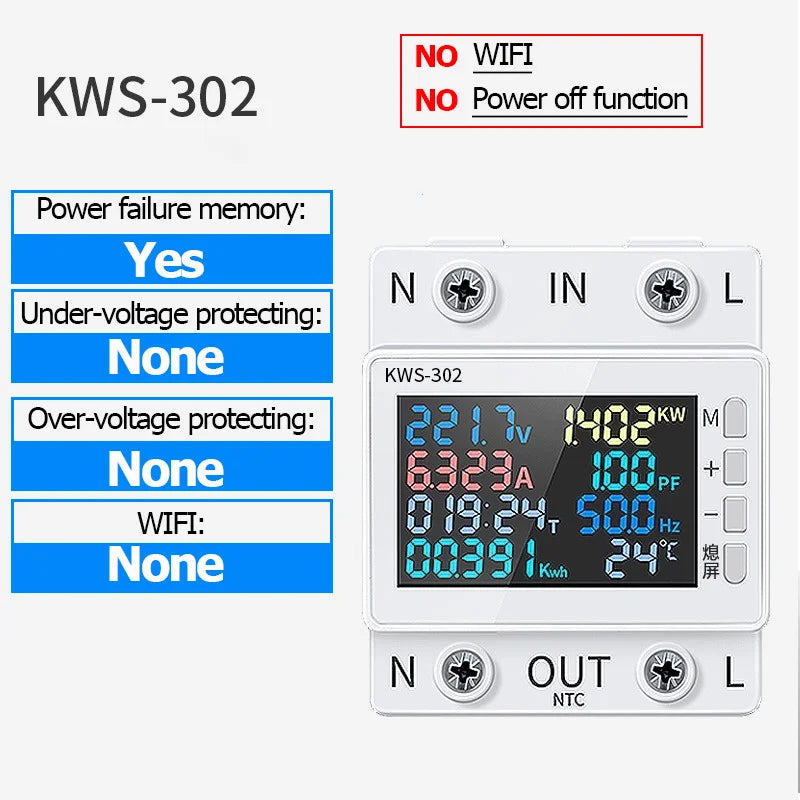

               KWS-302 (without WIFI and power off function)
Voltage measurement ranges: 170-270V
Current measurement ranges: 0-63A
Power measurement ranges: 0-17KW
Timing measurement ranges: 0-999Hrs
Electricity measurement ranges: 0-9999Kwh

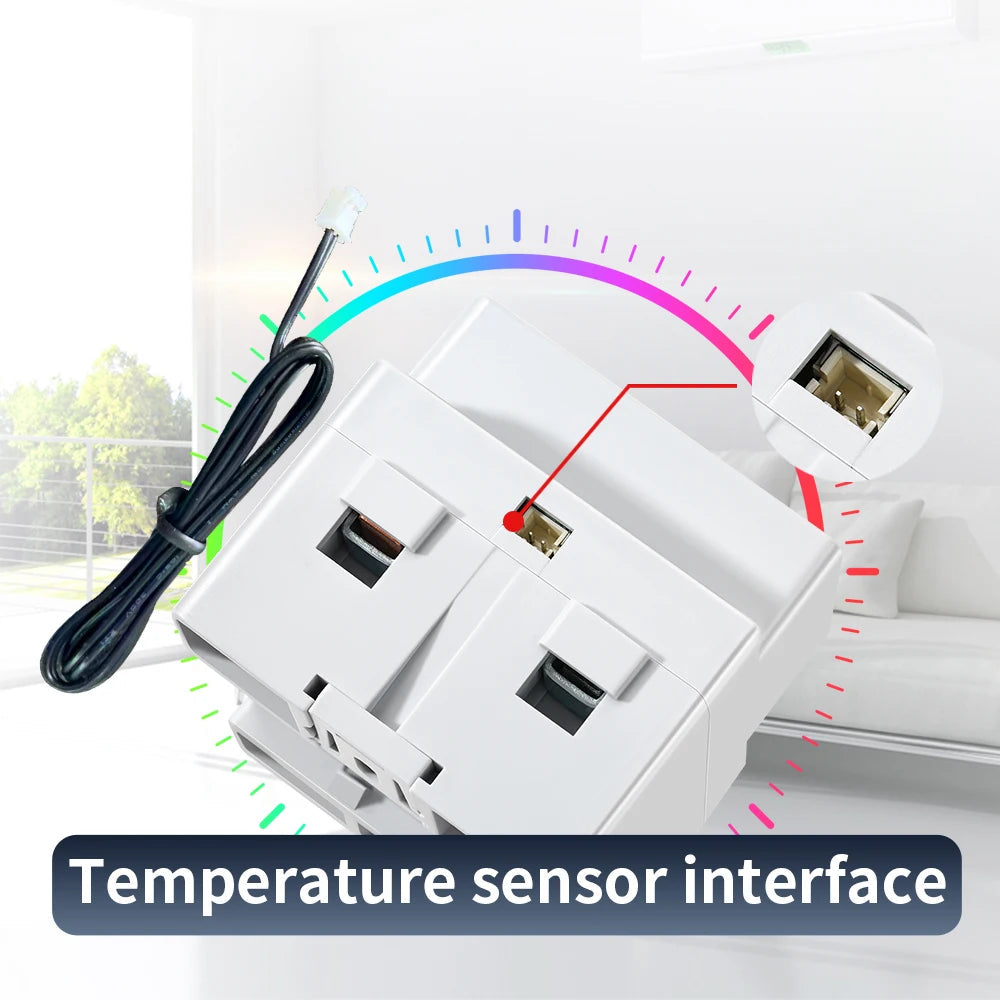

Temperature rangeminus: -20-150℃
Frequency measurement ranges: 50-60Hz
Power factor: 0.00-1.00PF
Power failure memory: KWS-302WF Yes, KWS-302L Yes, KWS-302 Yes
Under-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None
Over-voltage protecting: KWS-302WF Yes, KWS-302L Yes, KWS-302 None
WIFI: KWS-302WF Yes: KWS-302L None, KWS-302 None

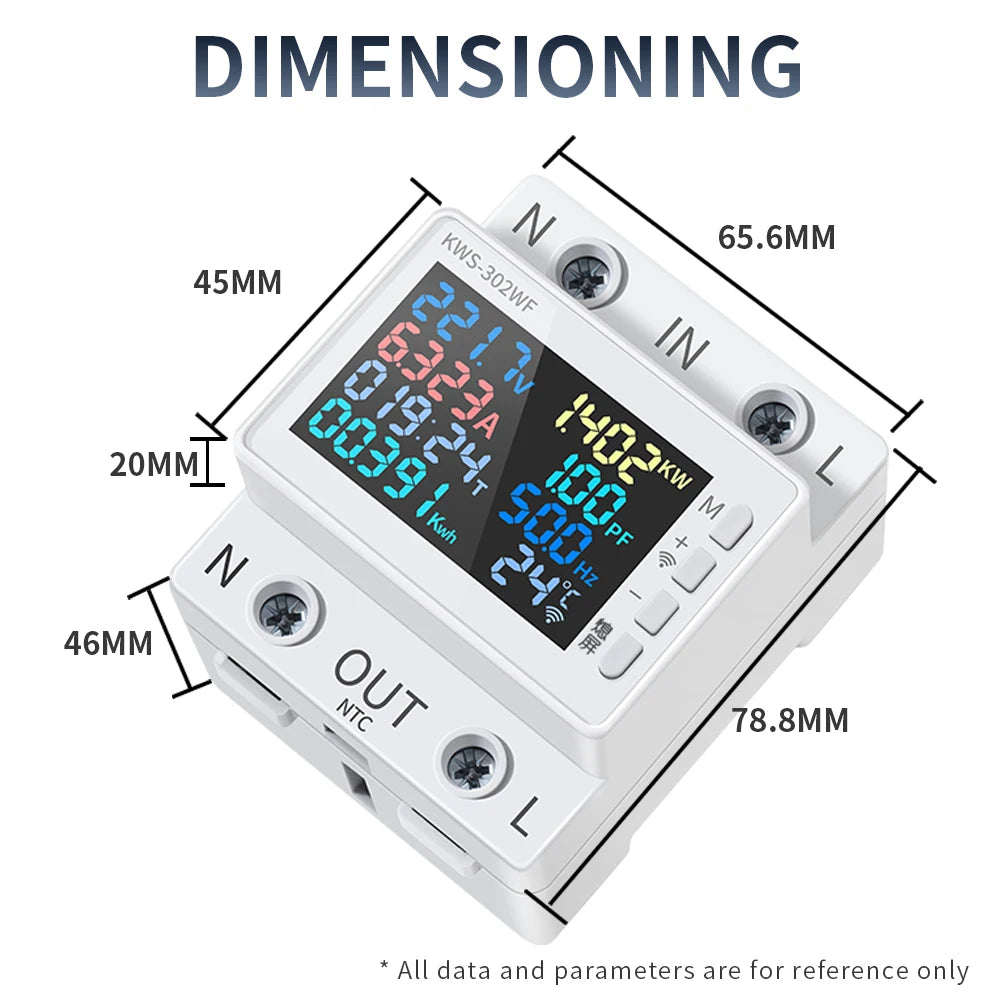

Item size: 66 * 66 * 82mm / 2.60 * 2.60 * 3.23in
Package size: 89 * 73 * 75mm / 3.50 * 2.87 * 2.95in
Package weight:
KWS-302: 182g / 6.42ounce
KWS-302L: 213g / 7.51ounce
KWS-302WF: 215g / 7.58ounce

Packing List:
1 * 8in1 Energy Meter
